Surgico 767 Height & Weight Scale

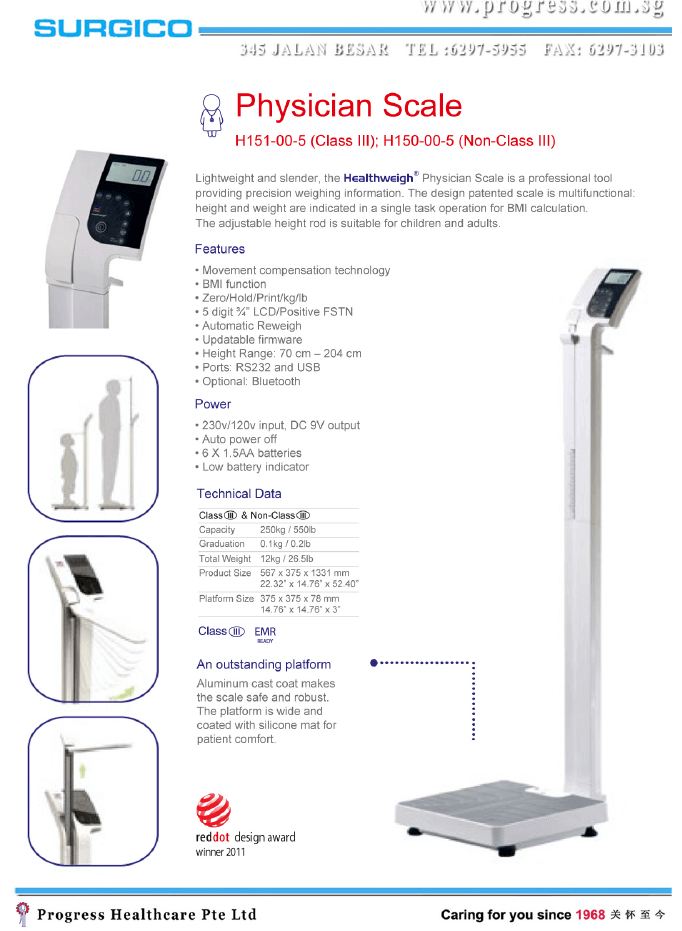

Lightweight and slender, the Healthweigh® Physician Scale is a professional tool providing precision weighing information. The design patented scale is multifunctional: height and weight are indicated in a single task operation for BMI calculation.
The adjustable height rod is suitable for children and adults. Range : 70cm to 204cm
Features
| H151-5 Class III | H150-5 Non-Class III | |
| Capacity | 250kg / 550lb | 250kg / 550lb |
| Graduation | 0.1kg / 0.2lb | 0.1kg / 0.2lb |
| Total Weight | 12kg / 26.5lb | 12kg / 26.5lb |
| Product Size | 567 x 375 x 1331 mm | 567 x 375 x 1331 mm |
| Platform Size | 375 x 375 x 78 mm | 375 x 375 x 78 mm |
HEIGHT ROD
Usage of the Surgico 767 Integrated Height Rod
The height rod is recessed within the column and will not get misalinged.

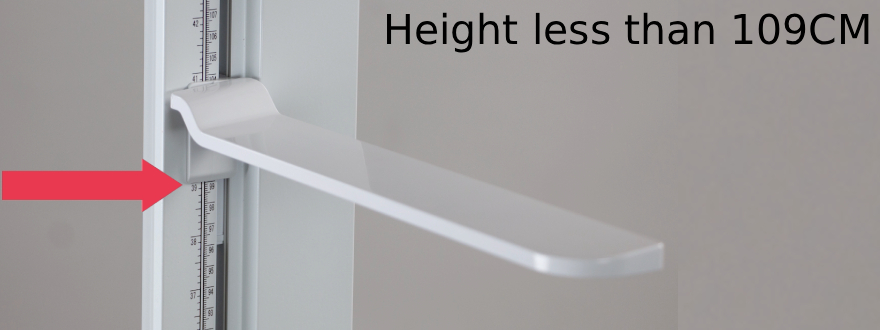

Below Left : Read off the height rod for heights less than 109cm

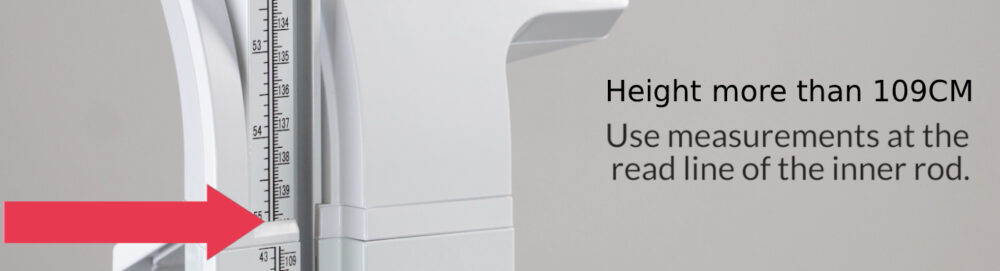

Middle : Push the horizontal flap all the way to the top. Read result at the mid-line.
Right : Incorrect Usage. Horizontal flap must be pushed all the way to the top.
BATTERY COMPARTMENT
Do not use batteries and electrical source concurrently.
